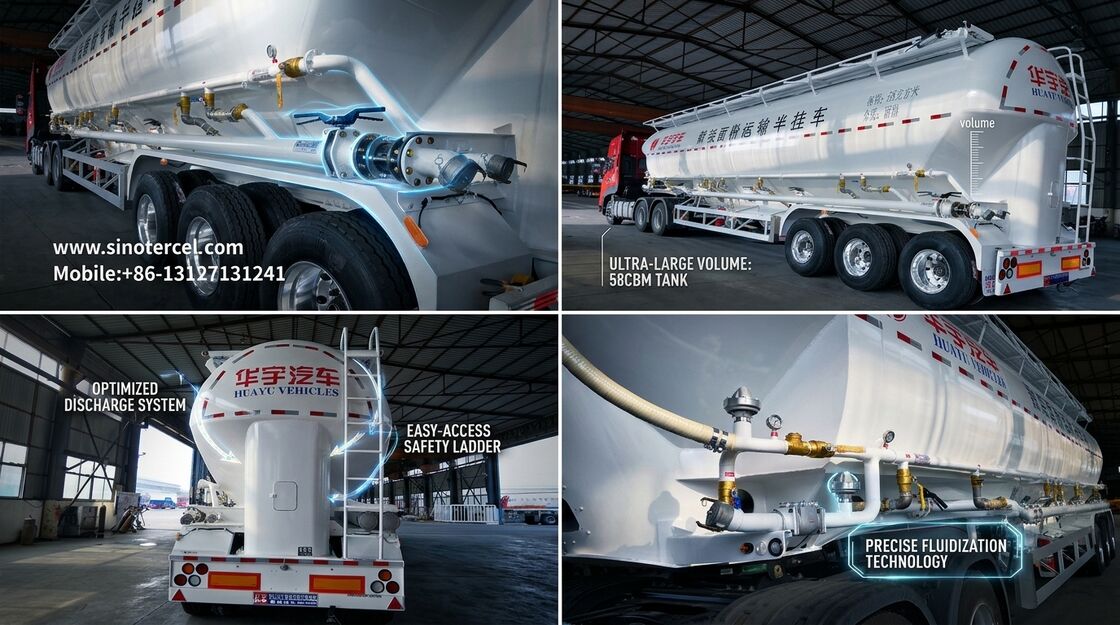

3 Axles Bulk Cement Semi Trailer 50000Liters Cement Bulker Trailer White

3 Axles Bulk Cement Semi Trailer 50000Liters Cement Bulker Trailer

Product Description:

Semi-trailer is a special vehicle for transporting large quantities of dust materials (bulk cement). It is generally suitable for areas where the weight is charged in strict accordance with national regulations, and the volume is generally between 35-45 square meters.
Suitable for fly ash, cement, lime powder, ore powder and other particle diameter is not greater than 0.1mm powder dry material transportation and pressure discharge, discharge vertical height of 15m, the horizontal can be up to 5m distance.
Semi-hanging powder material transport vehicle uses the self-provided engine power to drive the on-board air compressor through the force extractor, and the compressed air passes through
The cement on the fluidized bed is suspended into a fluid state. When the pressure in the tank reaches the rated value, the discharge butterfly valve is opened and the fluid cement flows through the pipeline.
The use of domestic advanced technology production, novel design, durable. Air bag type carrying capacity is large, unloading speed is fast and residual amount is small.
The integrated tank body has the characteristics of high overall strength, good rigidity, good pressure and good performance.
The design of the fluidized bed in the tank is scientific and the arrangement is reasonable, which can effectively shorten the unloading time, up to 1.4T/min, improve the volume utilization rate of the tank, reduce the residual ash rate, the residual ash rate is 0.2%. The tank body of the powder material transport truck adopts a double-cone inclined horizontal structure with double pipe intake and double barrel feeding. The unloading speed and residual rate meet the requirements of industry standards.
Transport medium: fly ash, density :500 kg/cubic meter, effective volume of the tank is 58.0 cubic meters, tank size: long 11900mm, maximum diameter 2500mm, minimum diameter 2000mm. Protective material :Q235 carbon steel, connection mode: left and right side and rear lower protection are welded connection, rear protection section size (mm):120×50×5, rear protection height (mm):540.

Parameter:
